Electric chipper. Wood chipper RM220E. Disc crusher. 55kW chipper

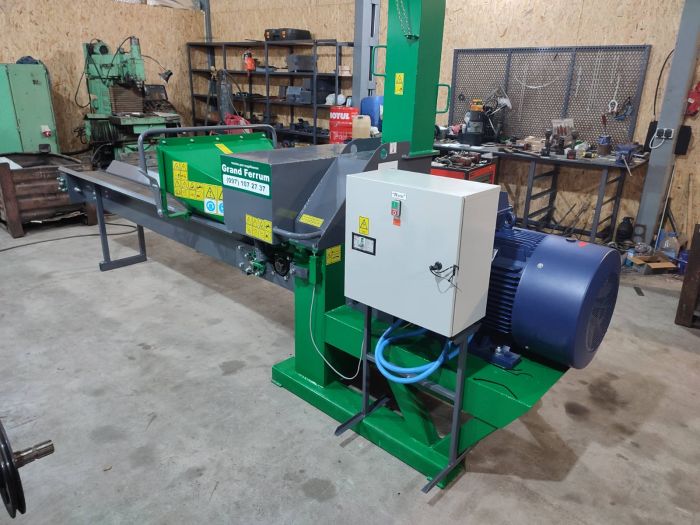

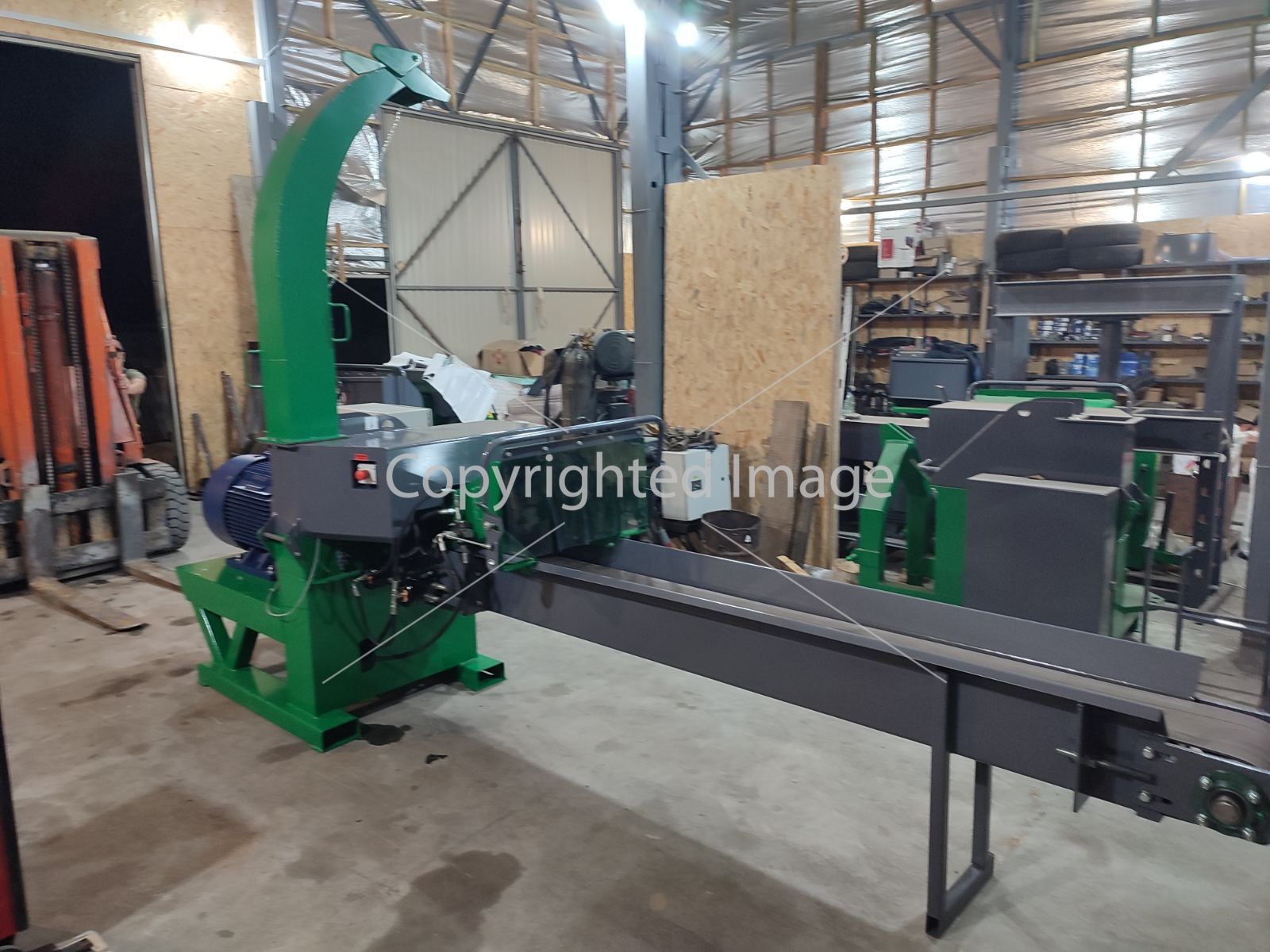

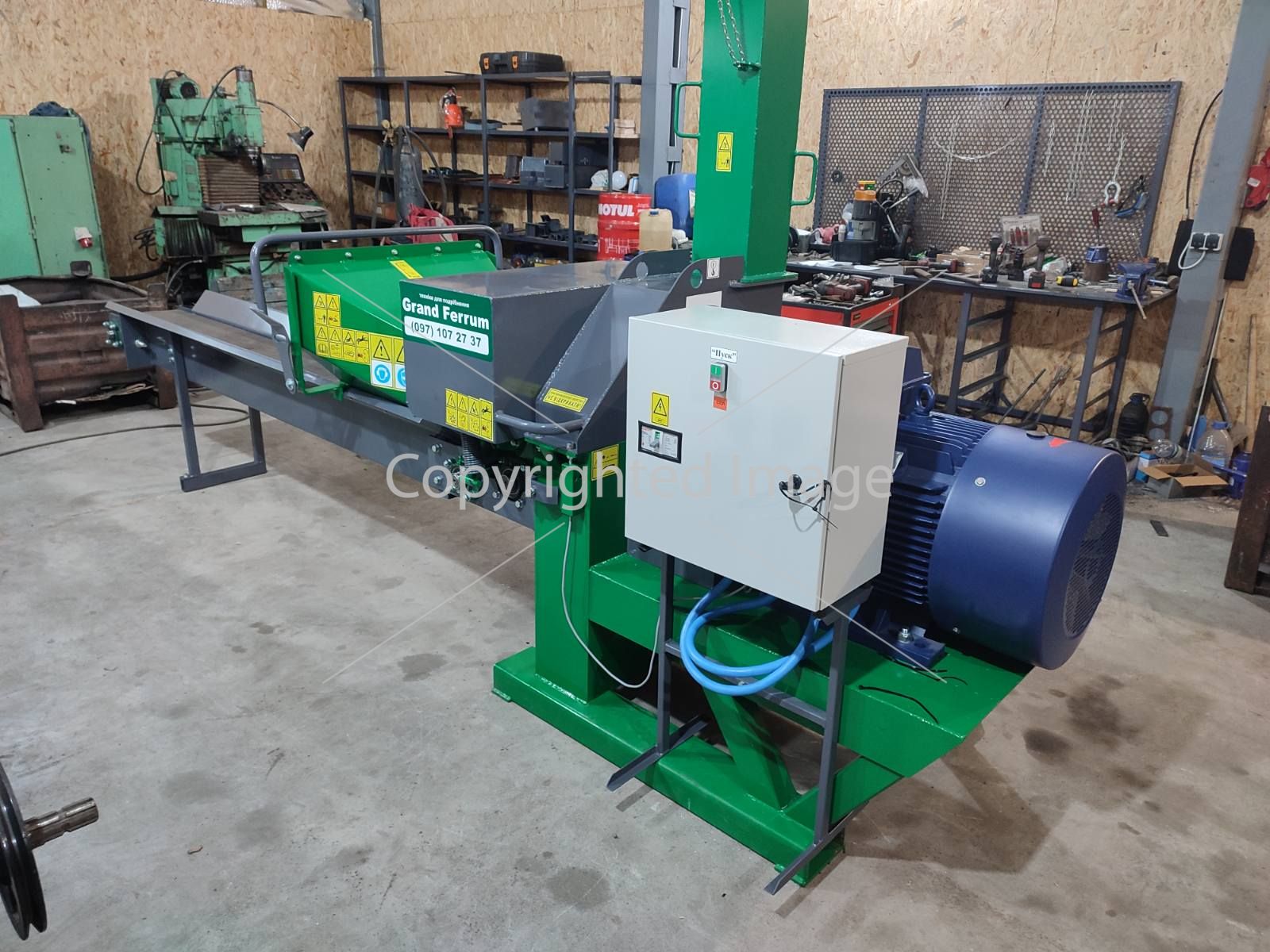

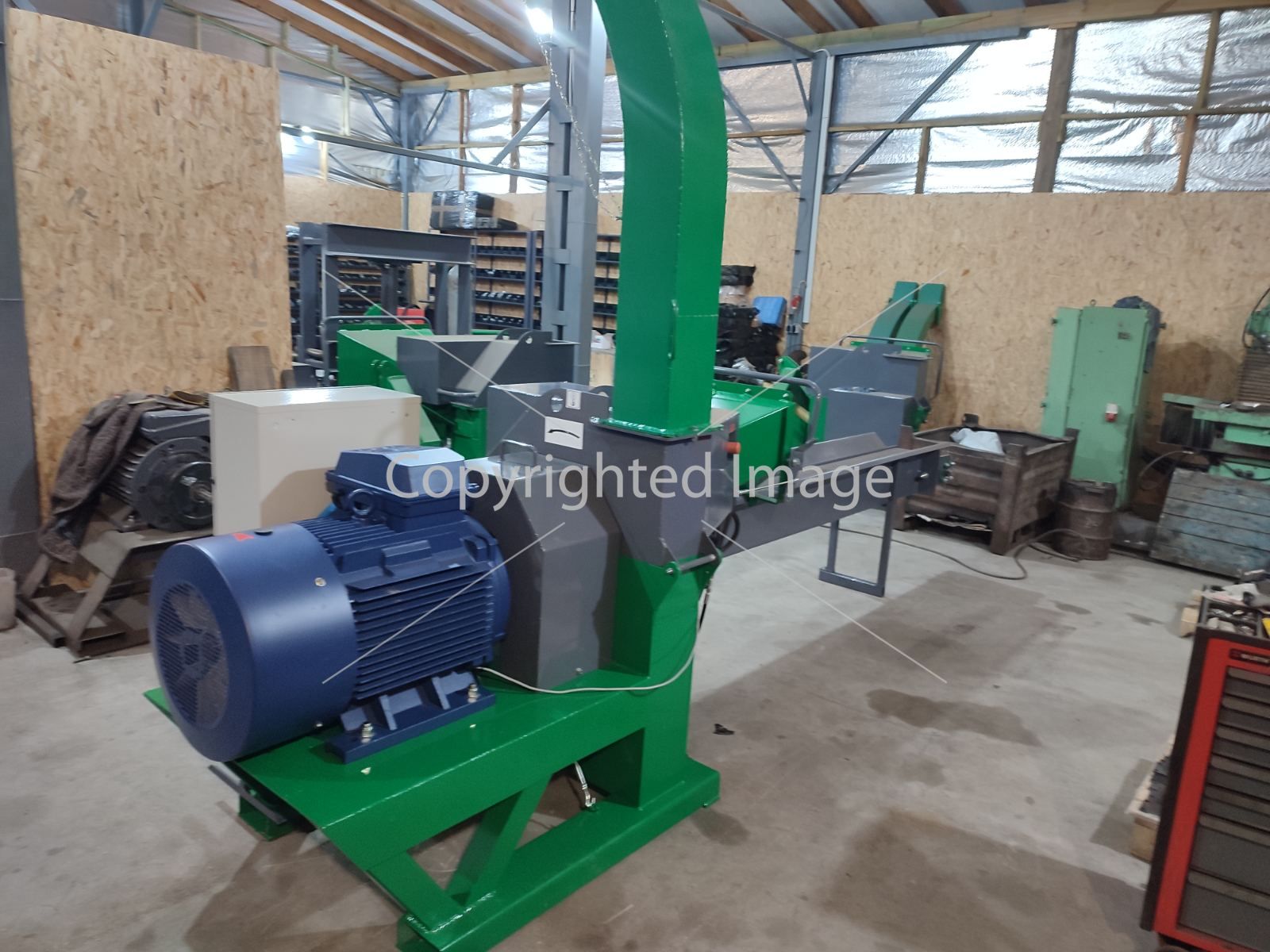

CHIPPER RM220E
The chipper is a rotary type chipper, with 2 or 3 knives. It is designed for processing roundwood or large lump waste (trimmings, sawdust) into chips. To obtain the ideal fraction for subsequent processing, drying and granulation/briquetting, it is necessary to further crush the chips in our hammer crusher, which is presented in the "Crushers" section.
Technical specifications
| Type | stationary |
| Mechanism drive | electric motor A200L6U3 (55 kW; 1000 rpm) |
| Innings | hydraulic system |
| Blade diameter | 975 mm |
| Number of revolutions of the cutting disc | 1000 rpm |
| Productivity | 4-8 tons/hour |
| Input tree size diameter: | 220 mm |
| width: | 235 mm |
| length: | 200 and more |
| The size of the chip fraction at the output is length: | 15-40 mm |
| width: | 10-20 mm |
| thickness: | 5-10 mm |
| Loading hopper position | horizontal |
| Max. wood chip ejection height | 3,0 meters |
| Exhaust pipe rotation angle | 360° |
| Volume of oil in the hydraulic system | 9 l |
| Oil pressure in the hydraulic system | 140 bar |
| Hydraulic oil | MGE 46V |
| Overall dimensions length: | 2063 mm |
| height: | 2426 mm |
| width: | 1250 mm |
| Weight: | 1025 kg |
Use of wood chips: Fuel wood chips for burning in specialized boilers, further processing into a finer fraction - for the production of pellets or briquettes, as well as for burning in boilers.
The equipment can be manufactured depending on your needs.
Can be equipped with a conveyor belt length of 2.7 meters or 4.7 meters, delivery without a conveyor belt is also possible
